Design No. 308

Gometra

1925Alfred Mylne

Design 308 represents one of Alfred Mylne's yacht designs from the early twentieth century. A vessel named Gometra was built to this design in 1925. The archive holds sixteen drawings relating to this design, forming part of the comprehensive record of Mylne's design practice. Full technical specifications and ownership history remain to be documented.

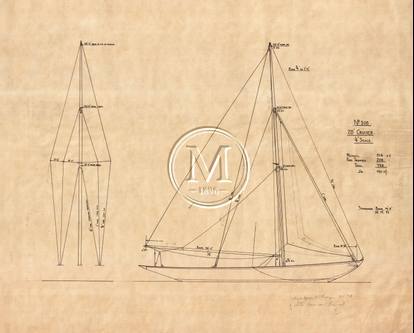

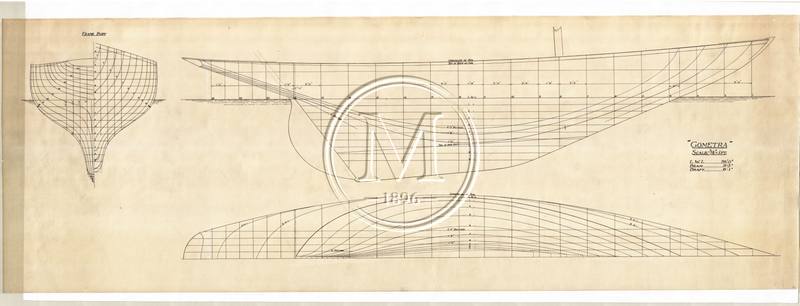

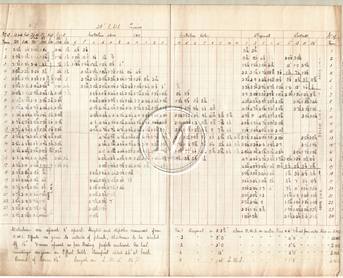

Original Drawings · 16 sheets

Purchase high-res drawings

Dimensions

LOA13.1 m / 43 ft
LOD13.1 m / 43 ft
LWL8.5 m / 28 ft
Beam2.8 m / 9 ft
Draft1.9 m / 6 ft
Displacement8.74 t
Sail Area74.23 m²

Notes

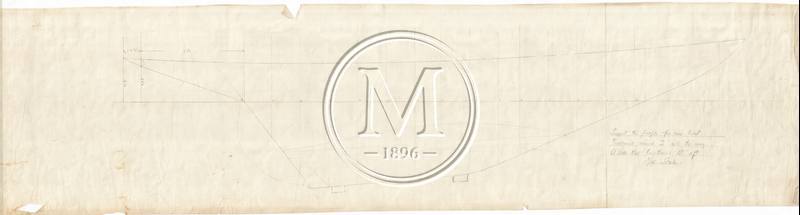

A label on the roll of drawings said ''Gometra' Cruise (The larger of 2 'Gometras'') LR 1931 lists 2 Gometras designed by Mylne Scan 13793 states "suggested new profile raised 2in, keel U shaped and extended aft 15in" with Reference to Elvira, design No. 145 More info on Gometra here http://www.gometra1925.it/2/

Yachts in the Register · 1

Builder

Bute Slip Dock, Bute

Built Gometra (1925)

ardmaleishboatbuilding.co.uk

[AI-generated] Bute Slip Dock Co was a prestigious Scottish yacht builder acquired in 1911 by Alfred Mylne and T. C. Glen-Coats, operating from Ardmaleish Point on the Isle of Bute until voluntary liquidation in 1975. The yard specialised in quality yacht construction including Six Metre racing class vessels. After closure the site was redeveloped into Ardmaleish Boatbuilding Company Ltd, which continues to operate today providing marine services, repairs, and new construction. [Enrichment] Bute Slip Dock was a boatyard on the Isle of Bute that operated through the mid-20th century. The yard was sold in 1975 and became the Ardmaleish Boatyard, continuing boatbuilding and repair work on the Clyde.

Historical Context

Alfred Mylne's design practice spanned several decades of significant development in yacht design. The 1920s represented a period of considerable activity, with designs produced for private clients and various building programmes. Design 308 falls within this era of the practice. The construction of Gometra in 1925 occurs at a time of renewed interest in sailing yacht design following the First World War. The preservation of the original drawing set provides insight into Mylne's design methodology and the technical standards maintained by his office during this period.
