Design No. 50

Unnamed Design

1900Centre BoardAlfred Mylne

Design 50 is a centre board yacht design from the Alfred Mylne archive. The design is documented by three drawings held in the archive. At least one yacht has been constructed to this design: Marietta, completed in 2009. Further details regarding the original design parameters, rig configuration, and construction history remain incomplete in the available records.

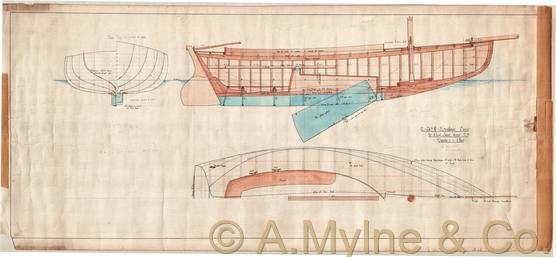

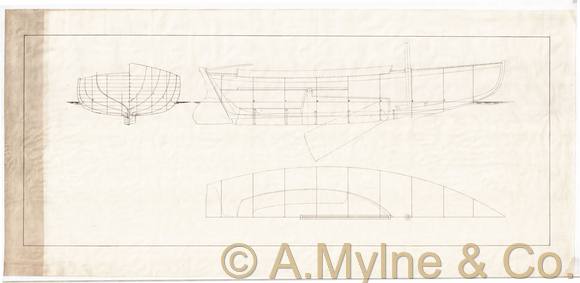

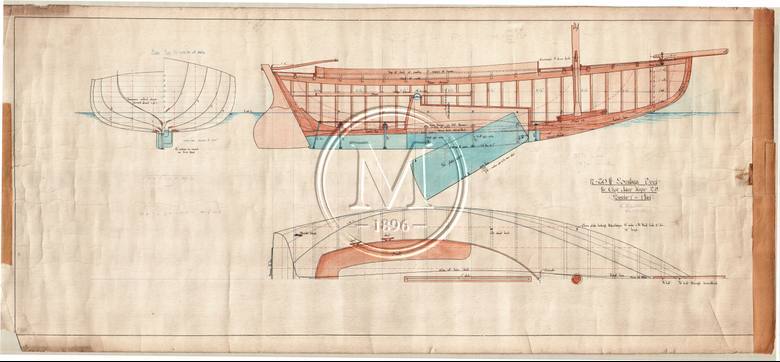

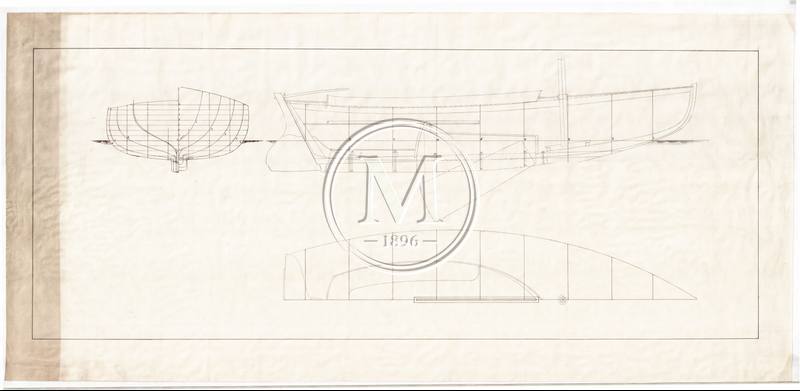

Original Drawings · 3 sheets

Purchase high-res drawings

Dimensions

LOA6.8 m / 22 ft
LOD6.1 m / 20 ft
LWL5.2 m / 17 ft
Beam2.1 m / 7 ft
Draft0.5 m / 2 ft
Sail Area25.084 m²

Notes

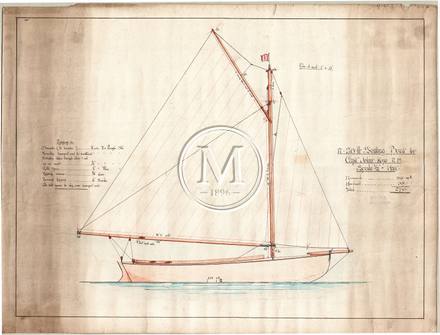

Beautiful 20ft Day boat with gorgeous original renderings. Draft with Centreboard down is 4.2ft. Original sailplan is gaff sloop with short bowsprit. Alternative Gunter rig sailplan with no bowsprit. Note that Rudder increases ovarall length aft by 0.9ft, and original gaff boom overhangs stern by 4ft. Gunter Rig version 17.7ft LOD (see Design No 50.1)

Yachts in the Register · 1

Builder

Patterson Boat Works, Cumbria

Built Marietta (2009)

pattersonboatworks.co.uk

[AI-generated] Patterson Boat Works was a historic boatyard operating in Cumbria during the early-to-mid 20th century, known for constructing and repairing wooden vessels including fishing boats and small commercial craft. The yard was active through the 1950s-1960s but eventually ceased operations as traditional wooden boatbuilding declined. No specific documented connections to A. Mylne designs are known. [Enrichment] Patterson Boat Works operated in Cumbria, building wooden sailing and motor boats through the early to mid-20th century; the yard served the north-west English lakes and coastal fleets.

Historical Context

Alfred Mylne (1881–1963) was a Scottish naval architect of considerable repute, known for his work in cruising yacht and small ship design. His design archive, now maintained as a historical record, encompasses numerous centre board and keelboat designs developed over his professional career. Centre board yachts held particular significance in early-to-mid twentieth century British yacht design, offering practical advantages for coastal cruising and racing. The fact that Design 50 was realised in 2009—many decades after Mylne's death—suggests the design's enduring utility or that it was revived for construction purposes.
