Design No. 76

Sunbeam

1903Alfred Mylne

Design 76 represents one of Alfred Mylne's offerings from the early 1900s. The design was realised in at least four yachts built in 1903: Coralie, Sunbeam, Diana, and Redwing II. The archive holds eight drawings for this design. Detailed specifications including dimensions, rig configuration, and the commissioning client remain incomplete in available records.

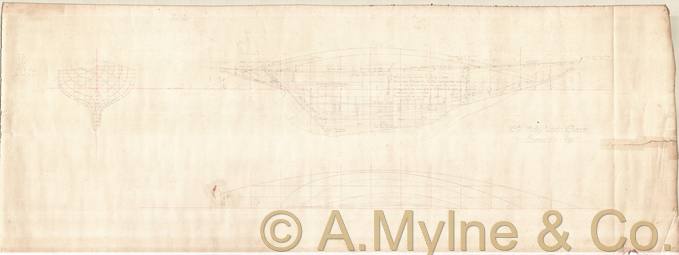

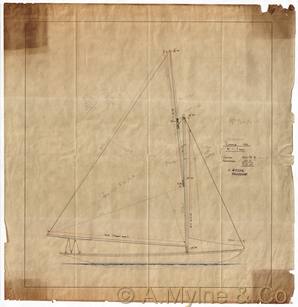

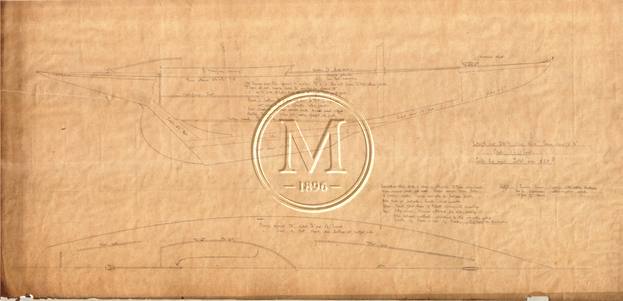

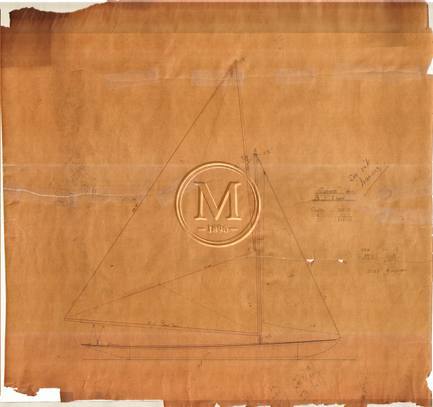

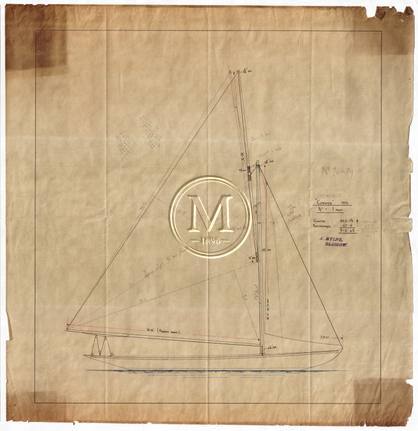

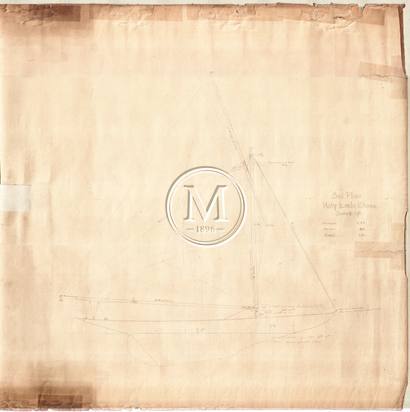

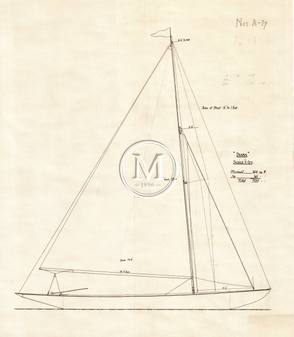

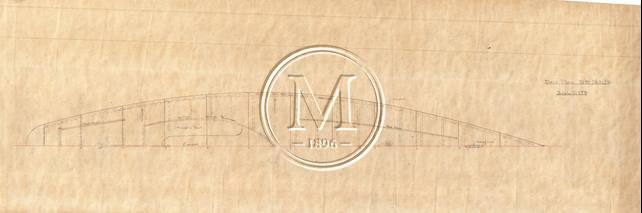

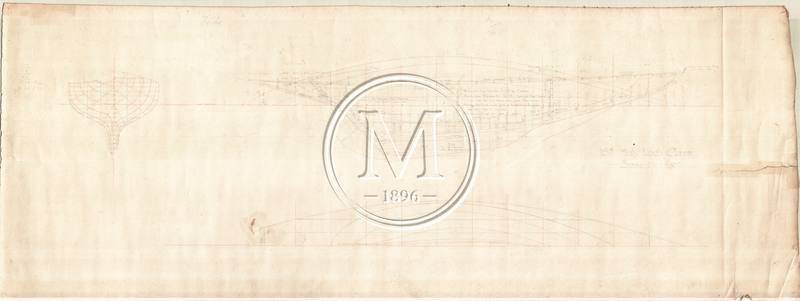

Original Drawings · 8 sheets

Purchase high-res drawings

Dimensions

LOA7.5 m / 25 ft
LOD7.5 m / 25 ft
LWL4.9 m / 16 ft
Beam1.6 m / 5 ft
Draft1.0 m / 3 ft
Sail Area26.013 m²

Yachts in the Register · 4

Builder

A. Robertson & Sons, Sandbank

Built Sunbeam (1903), Coralie (1903), Diana (1903), Redwing II (1903)

[AI-generated] A. Robertson & Sons was a celebrated Scottish boatyard established in 1876 on Sandbank's Holy Loch shore, operating for 104 years until 1980. The yard became renowned for building early metre-class racing yachts and earned international prestige constructing two 12-metre America's Cup challengers—Sceptre (1958) and Sovereign (1964)—designed by David Boyd. Alfred Mylne's designs commenced there in 1900, including the Clyde class sloops Valmai and Susette, followed by five yachts for Edmund Nordheim. Over 482 vessels were built for clients ranging from wealthy Clyde racing enthusiasts to the Admiralty (23 Fairmile motor torpedo boats during World War II). Unable to compete with modern fibreglass production, the boatyard liquidated in 1980; the historic site was subsequently redeveloped into residential areas and Holy Loch Marina, though maritime operations continue under Leisure Ecosse ownership.

Historical Context

The year 1903 marked a significant phase in Alfred Mylne's design career. The production of four yachts from a single design—Coralie, Sunbeam, Diana, and Redwing II—suggests strong market demand and client confidence in Mylne's designs. This batch construction approach was not uncommon among successful yacht designers of the Edwardian era, where proven designs could be modified slightly to suit individual patrons. The survival of eight drawings in the archive indicates the level of detail Mylne maintained in his design records, though the original specifications and commissioning information have not been preserved or documented.
