Design No. 195
Octavia
1911
Original Drawings · 8 sheets

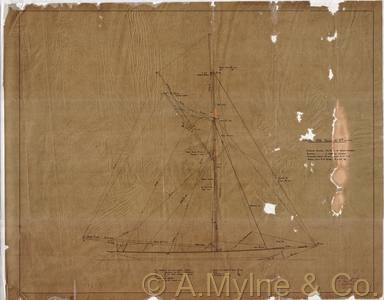

Sail Plan

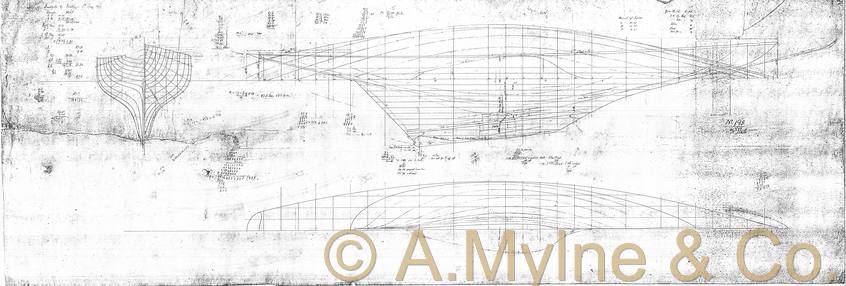

Lines Plan

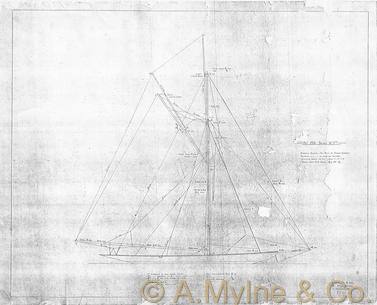

Sail Plan

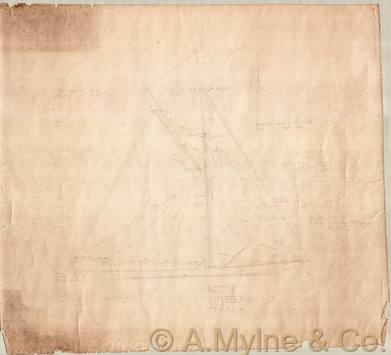

Sail Plan

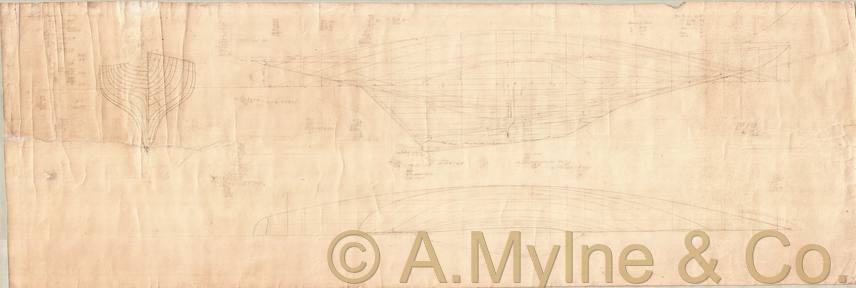

Lines Plan
Dimensions
LOA34.4 m / 113 ft
LOD29.1 m / 96 ft
LWL18.7 m / 61 ft
Beam5.2 m / 17 ft
Draft3.7 m / 12 ft
Displacement72.5 t
Sail Area6,899 sq ft
Notes
See further details in Calculations Book 12/11/10 See table of Offsets book for details also. The following is written on the outside of the roll of drawings - 'originals sent to Uffa Fox for one of his books and never returned'.
