Design No. 80

Zanetta

1903Alfred Mylne

Design 80 represents one of Alfred Mylne's productions during the early twentieth century. The design generated eight built yachts spanning from 1903 to 1918, beginning with Oola, Innisfallen, Maureen, Estelle and Garavogue—all completed in 1903—followed by Naneen in 1905, Geraldene in 1908, and Zanetta in 1918. The archive preserves twenty-four drawings associated with this design, documenting Mylne's approach to yacht development during this formative period.

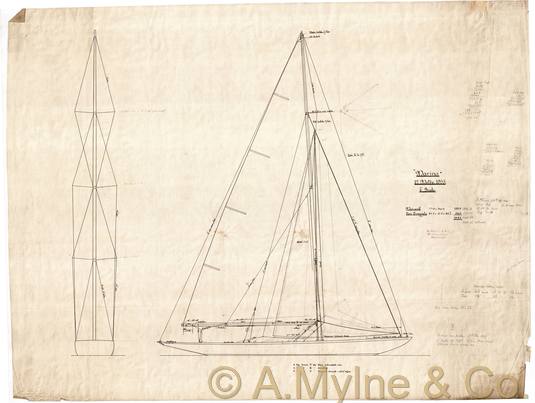

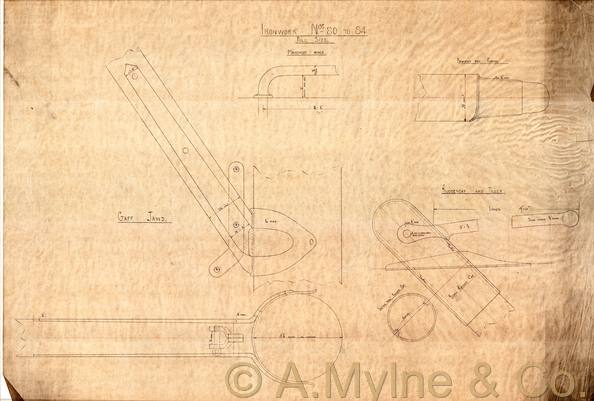

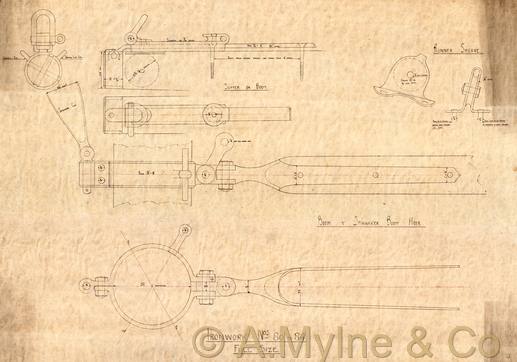

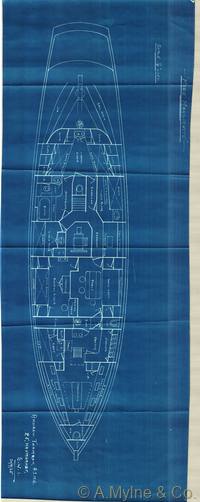

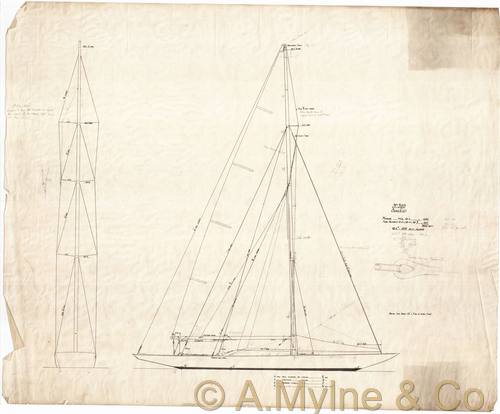

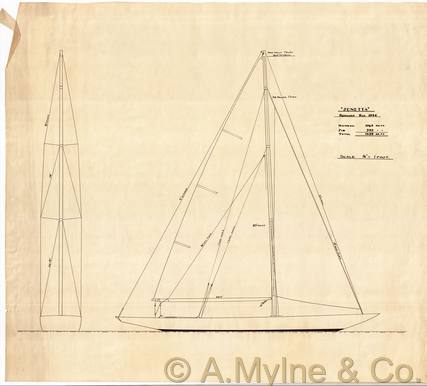

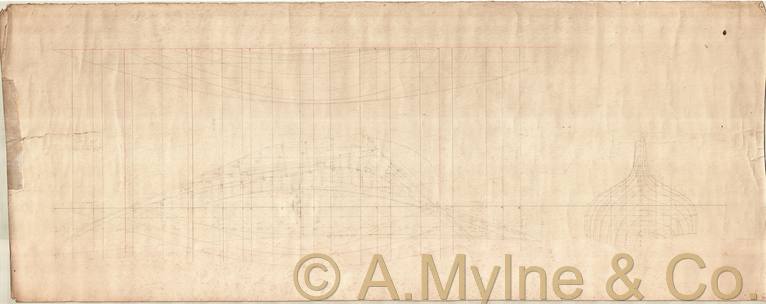

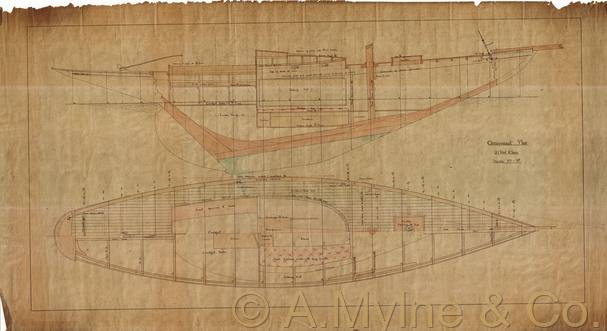

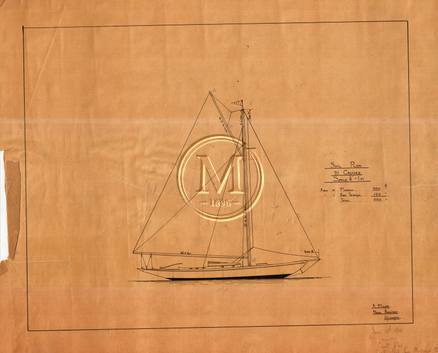

Original Drawings · 24 sheets

Purchase high-res drawings

Dimensions

LOA10.5 m / 35 ft
LOD9.9 m / 32 ft
LWL6.4 m / 21 ft
Beam2.3 m / 7 ft
Draft1.5 m / 5 ft
Sail Area58.529 m²

Notes

The Dublin Bay 21 Footers are the oldest class of racing yachts of their kind in the world. Designed by Alfred Mylne of Glasgow, the boats are unique to Dublin Bay. Seven were built between 1903 and 1908 and all seven still survive, though now in need of urgent restoration (May 2015)

Yachts in the Register · 8

Builders · 4

G. Hollwey & Sons, Dublin

Built Innisfallen (1903), Maureen (1903), Estelle (1903), Geraldene (1908)

G. Hollwey & Sons [Enrichment] G. Hollwey & Sons were Dublin boatbuilders building small sailing and rowing craft on Dublin Bay in the early 20th century.

J. Kelly, Portrush

Built Garavogue (1903), Oola (1903)

J. Kelly [Enrichment] J. Kelly was a boatbuilder at Portrush on the north coast of Northern Ireland, building small working and pleasure craft for the Antrim coast.

J. Clancy, Dun Laoghaire

Built Naneen (1905)

J. Clancy [Enrichment] J. Clancy was a boatbuilder at Dun Laoghaire on Dublin Bay, building and repairing Irish Sea sailing yachts in the early 20th century.

Bute Slip Dock, Bute

Built Zanetta (1918)

ardmaleishboatbuilding.co.uk

[AI-generated] Bute Slip Dock Co was a prestigious Scottish yacht builder acquired in 1911 by Alfred Mylne and T. C. Glen-Coats, operating from Ardmaleish Point on the Isle of Bute until voluntary liquidation in 1975. The yard specialised in quality yacht construction including Six Metre racing class vessels. After closure the site was redeveloped into Ardmaleish Boatbuilding Company Ltd, which continues to operate today providing marine services, repairs, and new construction. [Enrichment] Bute Slip Dock was a boatyard on the Isle of Bute that operated through the mid-20th century. The yard was sold in 1975 and became the Ardmaleish Boatyard, continuing boatbuilding and repair work on the Clyde.

Historical Context

Design 80 was developed during Alfred Mylne's established period as a designer, when his practice was generating multiple designs for construction. The clustering of five launches in 1903 indicates strong demand for the design at that moment. The subsequent builds—Naneen, Geraldene, and Zanetta—show continuing patronage extending through the First World War, a period when yacht construction was severely disrupted. The design thus spans both the Edwardian era and the wartime years, reflecting changing circumstances in the yacht-building industry.
